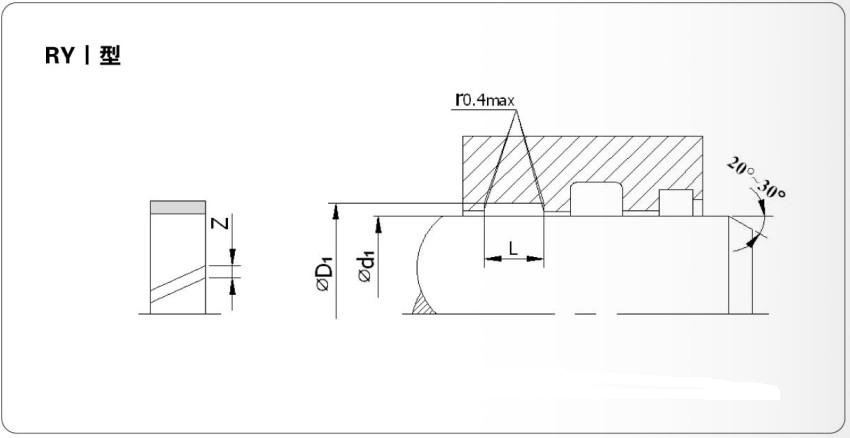

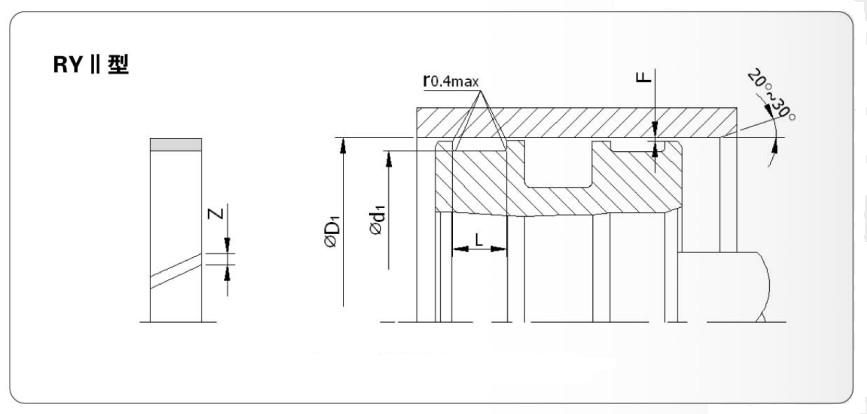

设计说明： 该导向带由聚甲醛 （POM）制成，RYⅡ型用于活塞，RYⅠ型用于活塞杆。
导向带为开口式，安装时可简单、快速地扣紧而无需辅助工具。
滑动表面无金属接触，防止“滞塞”和“咬死”现象，因而可减小金属零件的损坏。
低摩擦，无粘滑现象。
拥有良好的减震性，可减小径向振动。
工况要求：工作温度为-30℃到100℃，表面速度小于1m/s。
规格尺寸
| ΦD1(H10) |
Φd1(f9) |
L |
|
ΦD1(H10) |
Φd1(f9) |
L |
| 60 |
55 |
9.7 |
|
200 |
192 |
20.5 |
| 63 |
58 |
9.7 |
|
200 |
193.65 |
15.8 |
| 80 |
75 |
9.7 |
|
200 |
193.65 |
25.8 |
| 80 |
75 |
15 |
|
200 |
194 |
20 |
| 80 |
73.65 |
19.5 |
|
200 |
195 |
20 |
| 90 |
85 |
15 |
|
200 |
195 |
25 |
| 100 |
95 |
15 |
|
200 |
195 |
30 |
| 100 |
93.6 |
25.8 |
|
215 |
208.65 |
25.8 |
| 100 |
93.6 |
16.5 |
|
225 |
220 |
25 |
| 100 |
94 |
16.5 |
|
230 |
222 |
25.5 |
| 100 |
95 |
20 |
|
230 |
224 |
25 |
| 110 |
105 |
20 |
|
230 |
225 |
20 |
| 125 |
121 |
22 |
|
230 |
225 |
30 |
| 130 |
123.65 |
12.7 |
|
240 |
233.6 |
50.8 |
| 130 |
123.65 |
19.5 |
|
240 |
233.6 |
25.8 |
| 130 |
123.65 |
25.8 |
|
250 |
245 |
20 |
| 140 |
134 |
16.5 |
|
250 |
245 |
30 |
| 140 |
135 |
15 |
|
250 |
242 |
20 |
| 140 |
135 |
20 |
|
250 |
242 |
25.5 |
| 140 |
135 |
25 |
|
250 |
245 |
25 |
| 150 |
142 |
20 |
|
260 |
255 |
30 |
| 150 |
143.65 |
25.8 |
|
270 |
265 |
30 |
| 150 |
145 |
20 |
|
280 |
272 |
25.5 |
| 160 |
152 |
20 |
|
280 |
275 |
20 |
| 160 |
154 |
16 |
|
280 |
275 |
30 |
| 160 |
154 |
20.3 |
|
290 |
285 |
30 |
| 160 |
155 |
15 |
|
315 |
310 |
25.2 |
| 160 |
155 |
20 |
|
320 |
315 |
30 |
| 160 |
154 |
20 |
|
320 |
312 |
25.5 |
| 165 |
159 |
25 |
|
320 |
313.65 |
25.8 |
| 165 |
157 |
20 |
|
345 |
340 |
30 |
| 174 |
166 |
30 |
|
350 |
343.65 |
50.8 |
| 180 |
174 |
16.5 |
|
350 |
343.65 |
25.8 |
| 180 |
174 |
20 |
|
360 |
355 |
30 |
| 180 |
175 |
15 |
|
360 |
353.65 |
30 |
| 180 |
175 |
20 |
|
360 |
352 |
45 |
| 180 |
175 |
25 |
|
360 |
352 |
35 |
| 180 |
175 |
30 |
|
380 |
375 |
30 |
| 190 |
185 |
20 |
|
400 |
395 |
30 |
| 195 |
190 |
5.7 |
|
420 |
412 |
40 |
| 195 |
188.65 |
13 |
|
|
|
|
规格尺寸
| Φd1(f9) |
ΦD1(H10) |
L |
|
Φd1(f9) |
ΦD1(H10) |
L |
| 35 |
40 |
5.6 |
|
140 |
145 |
20.4 |
| 35 |
41.35 |
12.7 |
|
140 |
146 |
30 |
| 45 |
50 |
15 |
|
140 |
146 |
20.5 |
| 45 |
51 |
16 |
|
150 |
156.35 |
25.8 |
| 50 |
55 |
5.5 |
|
154 |
160 |
14.5 |
| 60 |
65 |
15 |
|
160 |
165 |
20 |
| 60 |
65 |
20 |
|
160 |
165 |
25 |
| 60 |
66 |
16.5 |
|
160 |
166 |
30.5 |
| 60 |
66 |
25.5 |
|
160 |
166 |
35.5 |
| 63 |
68 |
15 |
|
166 |
174 |
30 |
| 65 |
71.35 |
19.7 |
|
170 |
175 |
30 |
| 70 |
75 |
15 |
|
170 |
178 |
35.5 |
| 70 |
75 |
20 |
|
180 |
188 |
30 |
| 70 |
76 |
20 |
|
180 |
185 |
20 |
| 70 |
76 |
16.5 |
|
185 |
190 |
30 |
| 70 |
76 |
25.5 |
|
185 |
190 |
20 |
| 70 |
76.75 |
13.2 |
|
190 |
196.35 |
25.8 |
| 80 |
85 |
15 |
|
200 |
205 |
25.2 |
| 85 |
90 |
13 |
|
210 |
216.4 |
50.8 |
| 85 |
90 |
20 |
|
210 |
216.4 |
25.8 |
| 85 |
91 |
20.5 |
|
210 |
215 |
25 |
| 85 |
91 |
16.5 |
|
210 |
215 |
30 |
| 85 |
91 |
36 |
|
210 |
218 |
35.5 |
| 90 |
94 |
32 |
|
220 |
225 |
20 |
| 90 |
95 |
9.7 |
|
220 |
228 |
35.5 |
| 90 |
95 |
15 |
|
230 |
235 |
25 |
| 90 |
95 |
20 |
|
230 |
238 |
35.5 |
| 90 |
96 |
20 |
|
230 |
238 |
30 |
| 95 |
101.35 |
12.7 |
|
235 |
243 |
30.5 |
| 95 |
101.35 |
25.8 |
|
240 |
245 |
25 |
| 100 |
104 |
15 |
|
260 |
265 |
30 |
| 100 |
105 |
15 |
|
260 |
268 |
35.5 |
| 100 |
105 |
25 |
|
290 |
295 |
20 |
| 105 |
110 |
15 |
|
290 |
295 |
25 |
| 105 |
110 |
25 |
|
290 |
298 |
40.5 |
| 105 |
111 |
20 |
|
295 |
300 |
25 |
| 105 |
111 |
30.5 |
|
295 |
300 |
30 |
| 105 |
111.35 |
25.8 |
|
300 |
306.35 |
25.8 |
| 105 |
111.35 |
12.7 |
|
320 |
325 |
30 |
| 115 |
120 |
25 |
|
330 |
336.35 |
50.8 |
| 115 |
121 |
30.5 |
|
330 |
336.35 |
25.8 |
| 120 |
125 |
15 |
|
340 |
348 |
30 |
| 120 |
125 |
20 |
|
355 |
360 |
40 |
| 120 |
126.35 |
25.8 |
|
380 |
385 |
30 |
| 120 |
126.35 |
19.8 |
|
390 |
398 |
30 |
| 120 |
126 |
20.5 |
|
|
|
|
| 120 |
126 |
30 |
|
|
|
|
| 125 |
130 |
25 |
|
|
|
|
| 130 |
136.5 |
25.8 |
|
|
|
|
| 140 |
146.35 |
25.4 |
|
|
|
|
|
